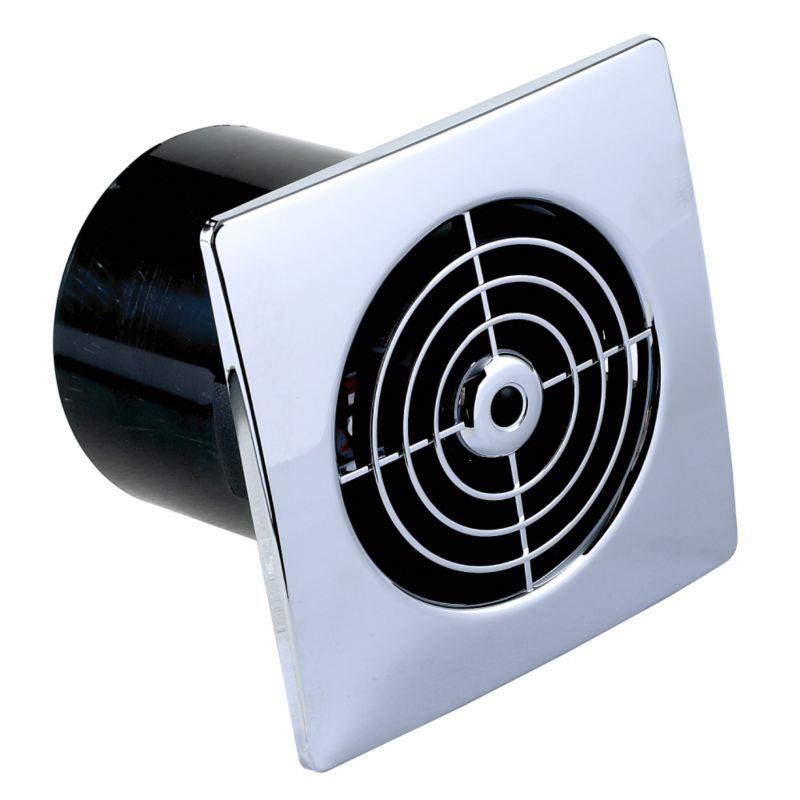

Cat. No. LP100SLVC - Lo Profile (Low Profile) 12 Volt SELV (Safety Extra Low Voltage) Ø100mm (4'') Bathroom/Shower Extractor Fan w/ Chrome Square Front Cover.
The Manrose Lo Profile fan has a unique design which enables it to fit unobtrusively into any wall or ceiling. Its flush fitting allows the fan to blend into the decor of the room.
Designed for wall or ceiling mounting within the splash area of a shower or bath (where current regulations prevent the use of conventional fans), the 12 Volt fan manufactured with a 12V - 50Hz shaded pole motor. The transformer and switching mechanism is mounted remotely either in the roof space or high on the ceiling next to the pullcord switch. Pullcord, humidistat, PIR and versions have to be mounted inside the room where the fan is installed and out of the reach of the person using the bath or shower. For best results the extractor fan should be fitted as high on the wall as possible or, if preferred, on the ceiling.
Caution: This fan MUST NOT be connected to a main supply. Only use the Manrose Type T12 range of 12V ~ 50Hz Safety Isolating Transformers.
Features:
- Designed for wall or ceiling mounting, complying with the 2006 building regulations on ventilation (F1), rated to IP44, through Ø102mm (4'') flexible ducting/rigid pipes or Manrose low profile flat channel ducting systems.
- Ø112mm hole cutout.
- Long life motor - single phase induction motor with pre-oiled bearings fitted for a long maintenance free life.
- Quiet and efficient - quiet motor has an extract rate of 85 m³/hr, 23 ltrs/sec; Fan speed: 2,400 r.p.m; Noise: 41.0 dB(A) quiet operation.
- Flush Fit - 10mm profile |(projection from the surface).
- Easy to install and maintain, comprehensive wiring and installation instructions are included.
- Fixings included.
- No risk of an electric shock in wet areas as the fan is mounted remotely.
- Wattage: single phase 14W.
- Low voltage 12V ~ AC. 50Hz. Supplied by a remote safety isolating transformer (Manrose T12 Series), purchased separately.
- Chrome Square Front Cover.
Dimensions (mm):
Please note: price is for the Fan ONLY.
