Cat. No. XP100T (XP100TB) - Ø100mm Square Bathroom/Toilet Extractor Fan Kit, Integral Adjustable Electronic Timer Model.

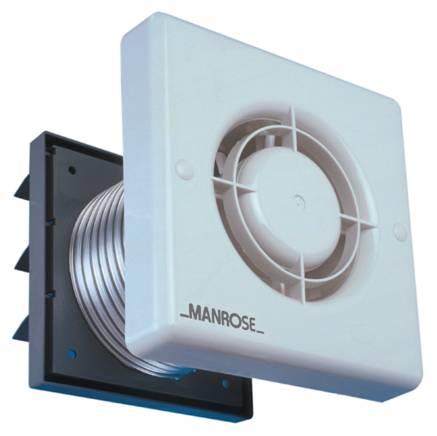

The fan kit is supplied complete with Ø100mm fan unit (timer model), one length of aluminium flexible ducting, one external (square) gravity wall grille, fixing screws, plugs and straps to secure the duct to the grilles.
Features:
- Designed for through wall fixing, cut out is Ø112mm (4 1/2"). Complies with the 2006 Building Regulations on Ventilation (F1).
- Quiet and efficient - quiet motor has an extract rate of 85 m³/hr, 23 ltrs/s (Please note: Performance may vary depending on the length of ducting used); Fan speed: 2,400 r.p.m; Noise: 41.0 dB(A) quiet operation.
- Long life motor - power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.
- Fan Model includes integral electronic timer adjustable between 1 and 20 mins.
- Manufactured using impact resistant high gloss ABS thermoplastics for strength and durability, aesthetics and easy cleaning.
- Single phase: 14W.
- 220-240V - AC. 50Hz.
- Maximum pressure: 20 p.a.
- Maximum operating temperature: 40°C
- Colour: White.
Additional information:
The fan is double insulated and does not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor.
For more information, please visit this products specification webpage.
Products installation instructions manual.
