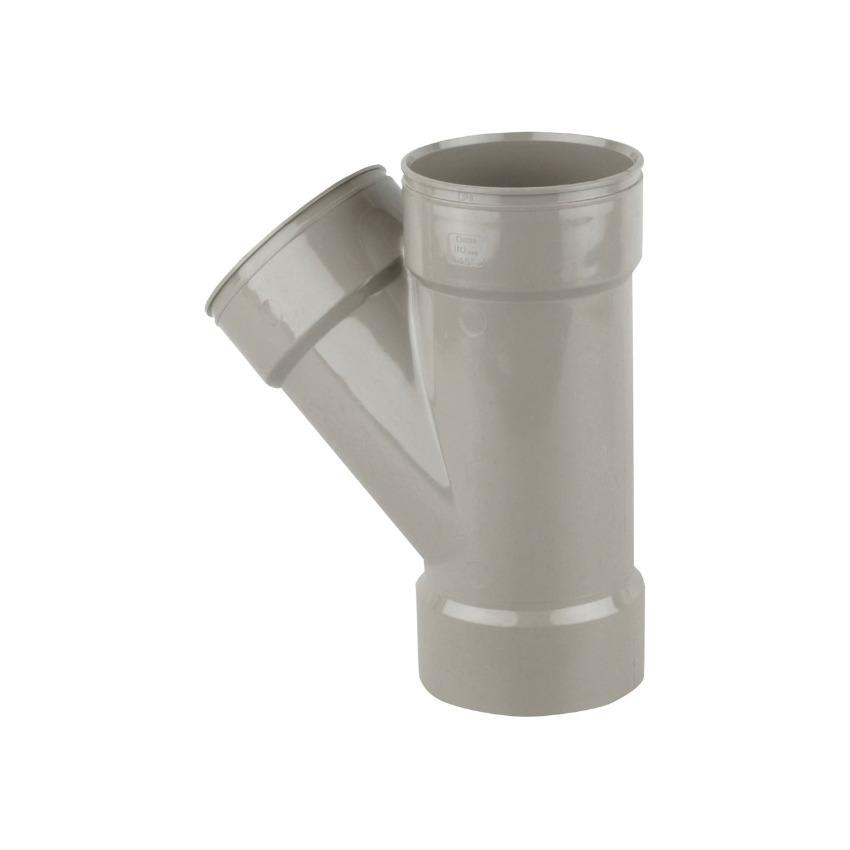

Wavin PVC-U Brnch 45Deg E 110x110x110 D/SW

OsmaS PVC-U Brnch 45° E 110x110x110 D/SW

Catalog code Wavin 4S410E
EAN Number 5011479118634
Pricing group 1 - Key OAG
Main Material PVC
Colour Olive Grey
Diameter 110
Outer pipe diameter connection 1 118 mm
Outer pipe diameter connection 2 118 mm
External tube diameter of connection 3 118 mm
Nominal inner diameter connection 1 DN 110
Nominal inner diameter of connection 2 DN 110
Nominal inner diameter of connection 3 DN 110
Wall thickness, connection 1 3.5 mm
Wall thickness, connection 2 3.5 mm
Angle 45 DEG
Length of connection 1 50 mm
Length of connection 2 50 mm
Length of connection 3 50 mm
Working length connection 3 142 mm
Working length connection 1 35 mm
Working length connection 2 142 mm
Model Y-piece
Connection 3 Plastic welded end
Capped
Reducing
System-oriented
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Material connection 3 PVC
Material quality connection 3 PVC-U
Surface protection connection 3 Untreated
Surface treatment connection 3 Untreated
With packings
Wall thickness, connection 3 3.5 mm
Seal material NBR (nitrile rubber)
Material connection 1 PVC
Material connection 2 PVC
Material quality connection 1 PVC-U
Material quality connection 2 PVC-U
Multi-part
