WAVIN Hep2O 10mm Smartsleeve Pipe, HX60/10SUPPORT

Manufacturers part number: HX60/10

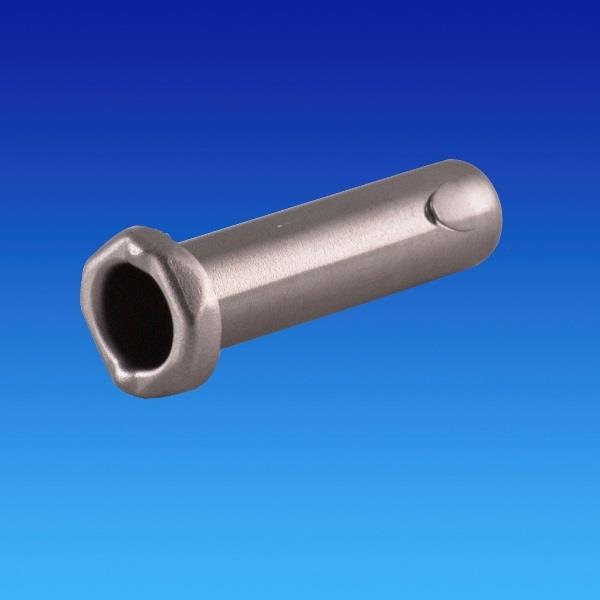

Wavin Hep₂O SmartSleeve® Pipe Support/Liner/Insert, 10mm.

Before making a joint using Hep₂O pipe, it is essential to insert a Hep₂O SmartSleeve® pipe support sleeve into the cut pipe end. The only exception is when connecting to the open spigot end of a Hep₂O fitting. In4Sure® joint recognition tells you when the pipe's inserted. Just insert the pipe into the fitting then rotate it. If it's fully inserted you'll feel a ‘rumbling' sensation, caused by the profiled end of the pipe support sleeve making contact with the castellated seat inside the fitting.

The SmartSleeve® features and benefits:

• It ensures the pipe retains its circular cross-section.
• It eases insertion of the pipe into the fitting - reduces the force required to push the pipe into the fitting.
• The profiled end of the SmartSleeve® helps you to check the pipe is fully inserted.
• It maintains the rigidity of the pipe within the fitting.
• It retains the circular cross-section of the pipe under extreme temperatures.
• Barbs on the SmartSleeve® lock it in the pipe, which helps ensure it is not left in the fitting when demounting.
• Manufactured from ‘food quality' 316 stainless steel and impervious to contaminants.
• Designed to be captive in the pipe but can be removed if required, using long nosed pliers. However, if damaged, the SmartSleeve® must not be re-used.
• Material: Stainless Steel.
• Colour: Self.
• Note: SmartSleeve® support sleeve is an integral part of the system and should NEVER be omitted when using Hep₂O pipe.

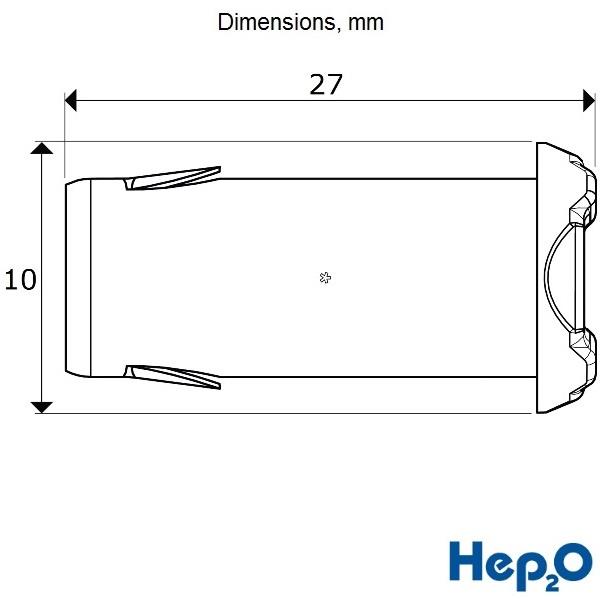

Dimensions (mm):

For more detailed information, please refer to Hep2O Installer Guide.

Hep2O is Kitemarked to Class S of BS 7291, parts 1 and 2 and is manufactured within a Quality Management System which satisfies BS EN ISO 9002.
Hep2O is also approved by WRAS - deemed safe for use in the supply of drinking water.
Hep2O Guarantee - As a result of its rigorous Quality Management programme, Hep2O carries a 50 year guarantee against defect in materials or manufacturing of all its pipe and fittings.
