DUDLEY Turbo Edge Adjustable Duoflush Syphon, 6/7/9 Litre Volume, Low Level

Applications
Our best ever syphon fits in all syphon flush ceramic and plastic WC cisterns.
Available as a replacement for all Dudley one piece and two piece syphons.
Water Saving
Dudley Duoflush® delivers water saving reduced flush when lever is held down and full flush when lever is depressed and released
6/7/9 litre volume adjustment guaranteeing optimum flush performance.

Features
The world’s most compact syphon - Fits all syphon flush ceramic and plastic WC cisterns

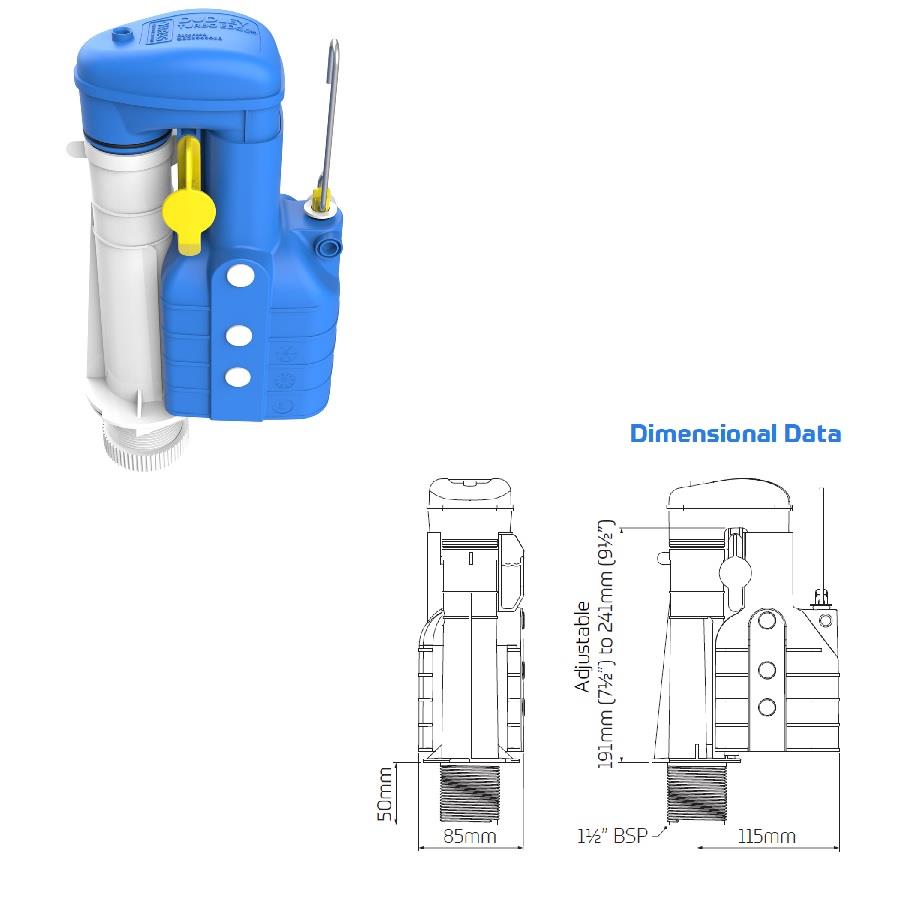

Height adjustable from 7½” (191mm) to 9½” (241mm)
Retrofits onto all existing Dudley downlegs; Turbo 88 Adjustable and Fixed Height, S44R and S1-11 syphon downlegs
The best performing syphon that fits all cisterns
User-friendly light-touch operation
Fully captive yellow fixing pin does not need to be removed to install syphon, easing installation
Convertible to single flush
WRAS approved product.

Technical Data
Outlet %26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;1½” BSP (48mm) %26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;
Flush Volume %26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;6/7/9 Litre Convertible %26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;
Sizes %26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;Adjustable from 191mm (7½”) to 241mm (9½”) in ½” increments %26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;
Cistern Type %26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;Low Level %26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;



Features
Width: 85mm
Height Adjustable: 191 to 241mm
