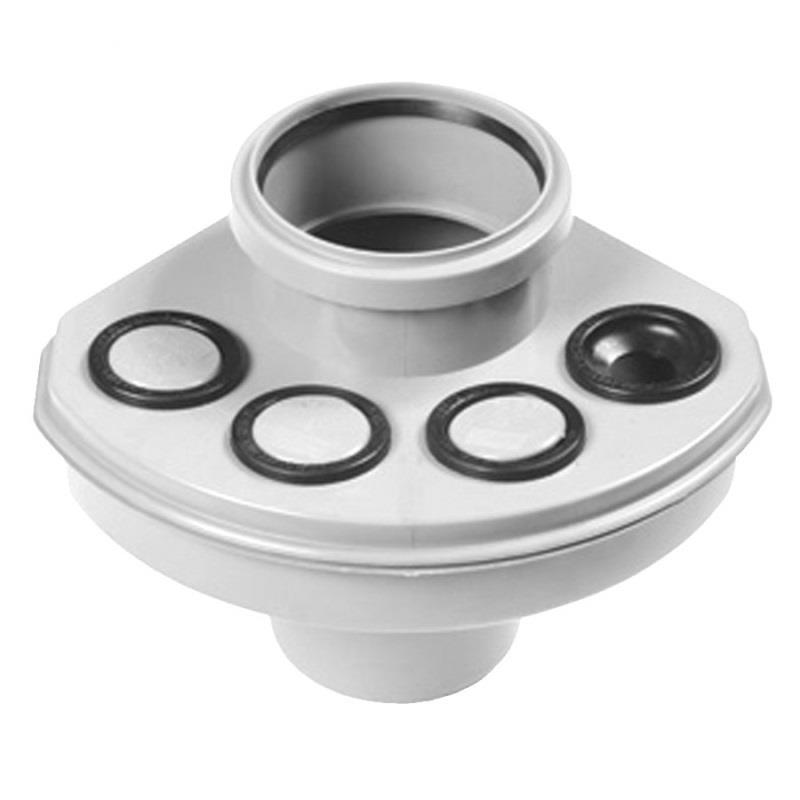

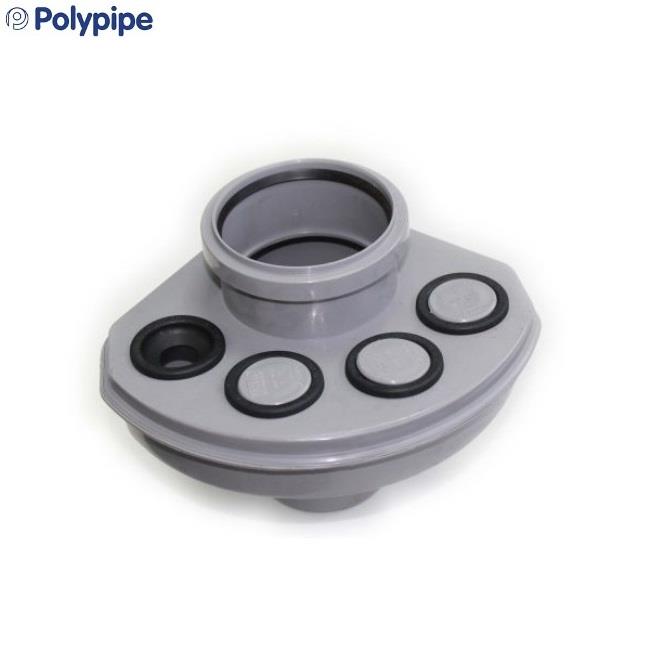

POLYPIPE Soil & Vent 110mm Manifold Body, Grey, MAN5

POLYPIPE Manufacturer's Part Number: MAN5.

POLYPIPE Ring Seal (Push-Fit) Soil & Vent Fitting - Ø110mm/4'' Single Socket Clay Drain Connector; Grey.

The MAN5 Soil Manifold overcomes the problem of crossflow whilst maintaining the facility to connect waste pipes to the soil stack above floor level. The Manifold is supplied with four blanked-off push-fit connection points, the plugs from which can be removed to connect Ø32mm or Ø40mm waste pipes in any combination. Where Ø50mm waste pipes are to be connected, the relevant hole is enlarged to the template moulded into the fitting and the existing seal is replaced with the MAN7 50mm Seal (purchased separately).

Product features:

- Polypipe Soil & Vent: Ring Seal Soil & Vent manifold for connecting up to 4 x Ø32mm, 40mm or 50mm waste pipes to main Ø110mm/4'' soil pipe.
- Connections: Ring Seal (push-fit) Socket x Spigot (fits into another socketed pipe, fitting or connector).
- Accepts up to 4 x Ø32mm or Ø40mm waste inlets; For Ø50mm connections - cut to template and use MAN7 Seal (purchased separately).
- Outer dimensions: Ø110mm/4''
- Wall thickness: 3.20mm.
- Material: Polypropylene.
- Colour: Grey.
- Note: Polypipe soil and waste systems are suitable for short intermittent discharges of hot and cold water in normal domestic installations in the UK. They are not suitable for continuous discharge at elevated temperatures.
