POLYPIPE Solvent Soil & Vent 110mm Short Access Pipe Single Socket, S/Grey, SWA88SG

POLYPIPE Manufacturer's Part Number: SWA88SG.

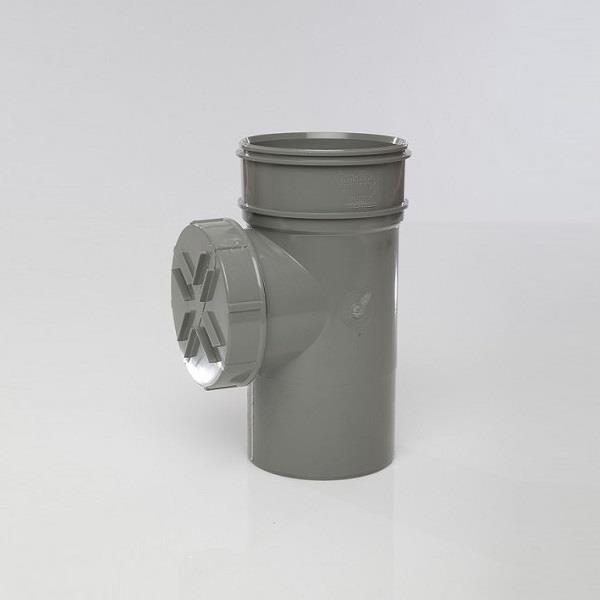

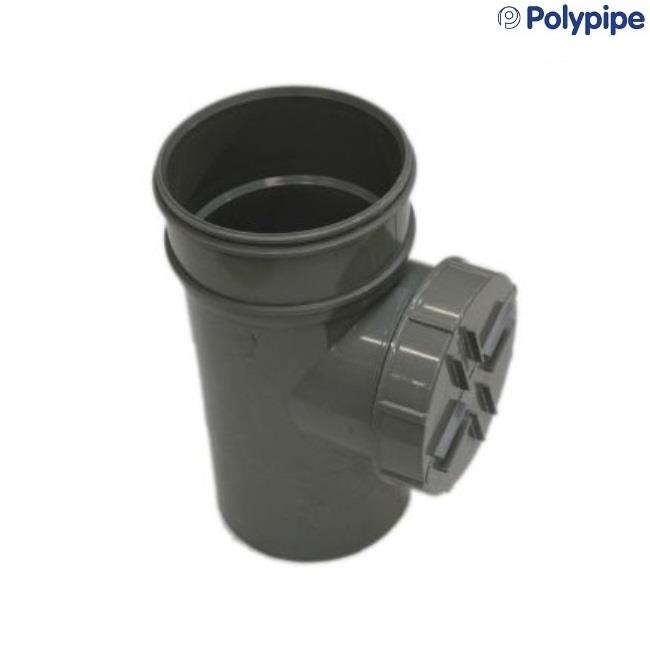

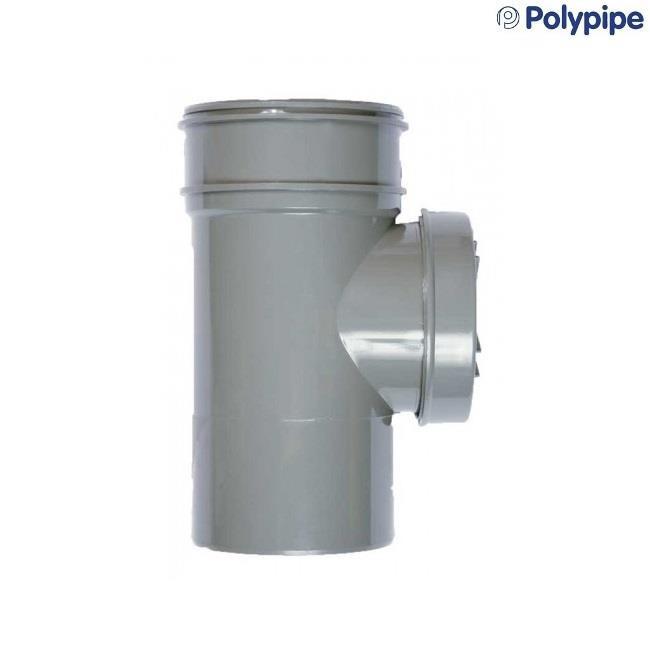

POLYPIPE System 2000 Solvent Soil & Vent Outlet - Ø110mm/4'' Single Socket Short Access Pipe with screwed access cap; Solvent Grey.

Where the discharge stack has a long drain connection to an inspection chamber, access for rodding and testing should be provided at or near the base of the stack. When ground floor appliances are connected to the soil stack, the access point should be sited above the spillover level of the appliances.

For multi-storey domestic buildings, access into the stack should be provided at 3 storey intervals and for multi-storey commercial buildings access should be provided on each floor.

Product features:

- Polypipe Soil & Vent: Solvent Soil & Vent fitting with screwed access cap used for pipe cleaning/inspection.
- Connections: Solvent Weld Socket x Spigot (fits into another socketed pipe, fitting or connector).
- Outer dimensions: Ø110mm/4''.
- Wall thickness: 3.20mm.
- Material: PVCu; Manufactured to BS EN 1329-1 and BS 4514 (PVCu soil pipes & fittings: 110mm).
- Colour: Solvent grey, to match the colour of grey solvent soil & vent pipe & fittings.
- Note: Polypipe soil and waste systems are suitable for short intermittent discharges of hot and cold water in normal domestic installations in the UK. They are not suitable for continuous discharge at elevated temperatures.
