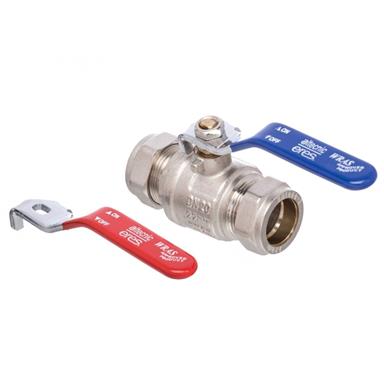

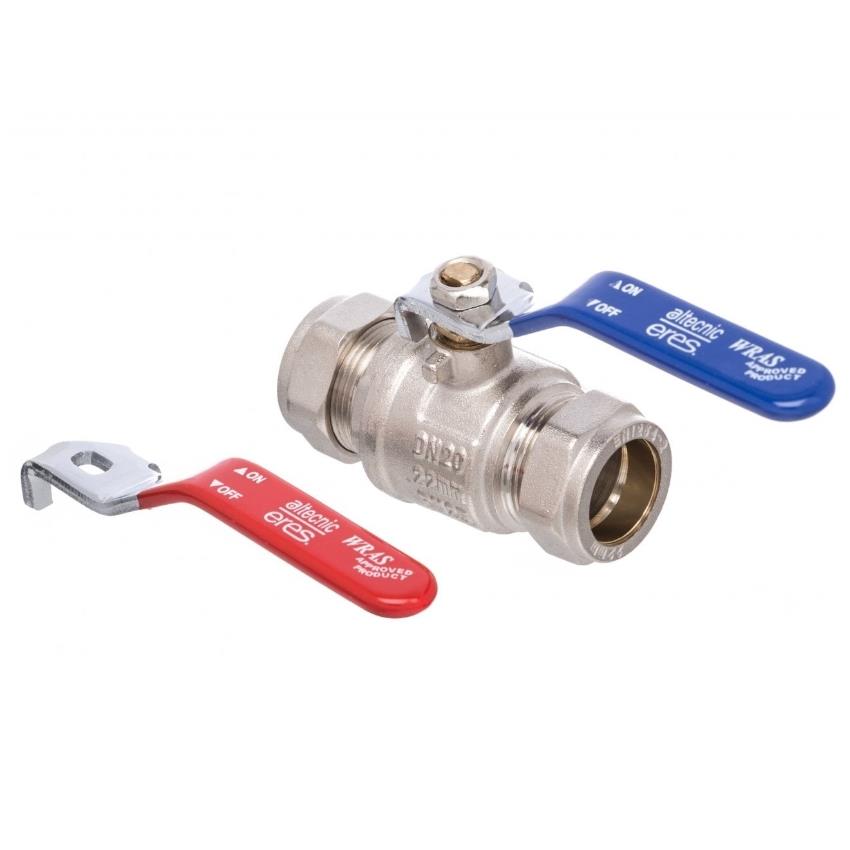

ALTECNIC Eres 15mm Full Bore Compression Lever Ball Valve supplied with both Red and Blue Lever Handles, ER-15MMBV.
The Altecnic Eres Brass Compression Ball Valves are lever operated through 90°, with bi-directional flow. Hard chrome plated ball for increased wear resistance.
Product features and specifications:
- Brand: Altecnic.
- Part number: ER-15MMBV.
- Size: 15mm.
- Connections: Compression ends.
- Supplied with Red and Blue lever handles.
- Conforms to: BS EN 13547.
- Pressure temperature rating: BS EN 1254-2.
- Max. temperature at 16 bar: 30°C.
- Max. temperature at 10 bar: 65°C.
- Max. temperature at 6 bar: 110°C.
- Max. temperature at 5 bar: 120°C.
- Approvals: WRAS Approved.
- Finish: Nickel plated brass.
ALTECNIC Eres 15mm Red/Blue Lever Compression Ball Valve, ER-15MMBV
MPN: ER-15MMBV
£5.47 Inc VAT
£4.56 Exc VAT
£16.64 RRP 67% Saving
Delivery available in 45 working days
Description
Read more
Description
ALTECNIC Eres 15mm Full Bore Compression Lever Ball Valve supplied with both Red and Blue Lever Handles, ER-15MMBV.
The Altecnic Eres Brass Compression Ball Valves are lever operated through 90°, with bi-directional flow. Hard chrome plated ball for increased wear resistance.
Product features and specifications:
- Brand: Altecnic.
- Part number: ER-15MMBV.
- Size: 15mm.
- Connections: Compression ends.
- Supplied with Red and Blue lever handles.
- Conforms to: BS EN 13547.
- Pressure temperature rating: BS EN 1254-2.
- Max. temperature at 16 bar: 30°C.
- Max. temperature at 10 bar: 65°C.
- Max. temperature at 6 bar: 110°C.
- Max. temperature at 5 bar: 120°C.
- Approvals: WRAS Approved.
- Finish: Nickel plated brass.
