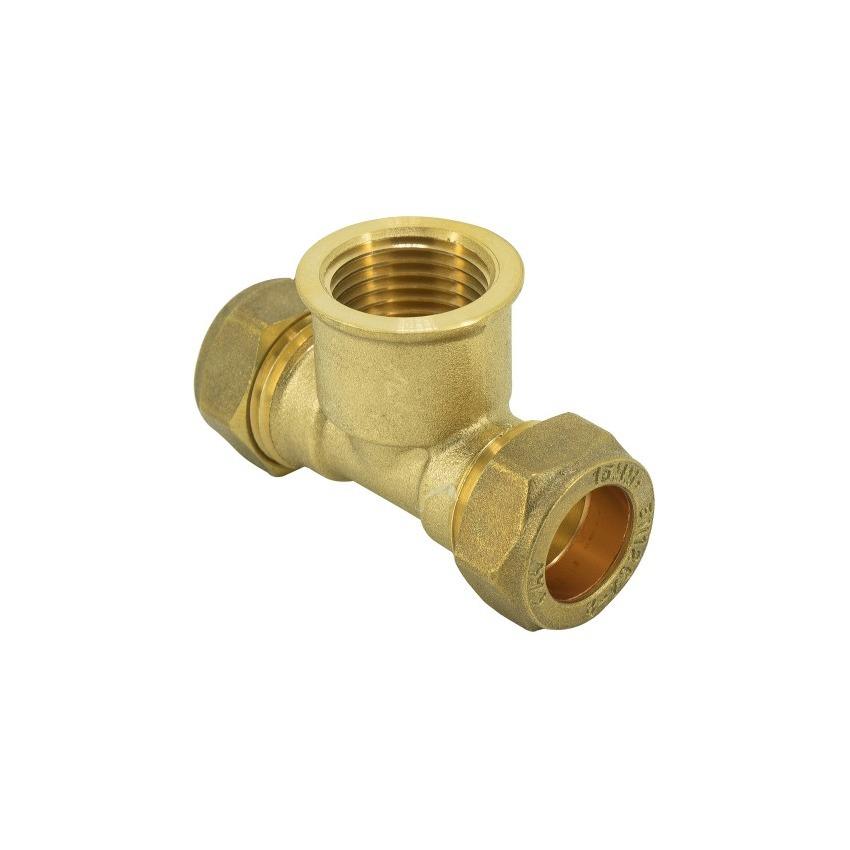

22mmx22mmx1/2" Compression Branch Red Tee, M27222204

22mmx22mmx1/2" Compression Branch Red Tee

Product features:

- Brand: PFL Value.
- Range: Compression Fittings.
- Profile: Compression.
- Part number: M27222204
- Material: Brass, DZR, conforms to BS EN 1057.
- Size: 22mm x 22mm x 1/2"

• Suitable for hot and cold drinking water, heating, and chilled water systems.
• Designed for confined spaces and/or where the use of heat must be avoided.
• Connects a wide range of tubes in accordance with EN 1057.
• Available in duplex brass and/or dezincification resistant (DZR) brass or as dezincification immune red brass.
• Also available in chrome plated in accordance with EN 248.
• Compatible with low carbon steel, stainless steel, polyethylene (PE-X) and polybutylene (PB).
• Fast and easy to use flame-free installation.

Operating Parameters: Water: 8-15mm: 25 bar at 95 Degrees. 28mm: 6 bar at 95 Degrees. 35-54mm: 13 bar at 95 degrees.

Gas: 1 Bar at 30 Degrees.

Compressed Air: 7 Bar at 30 Degrees
