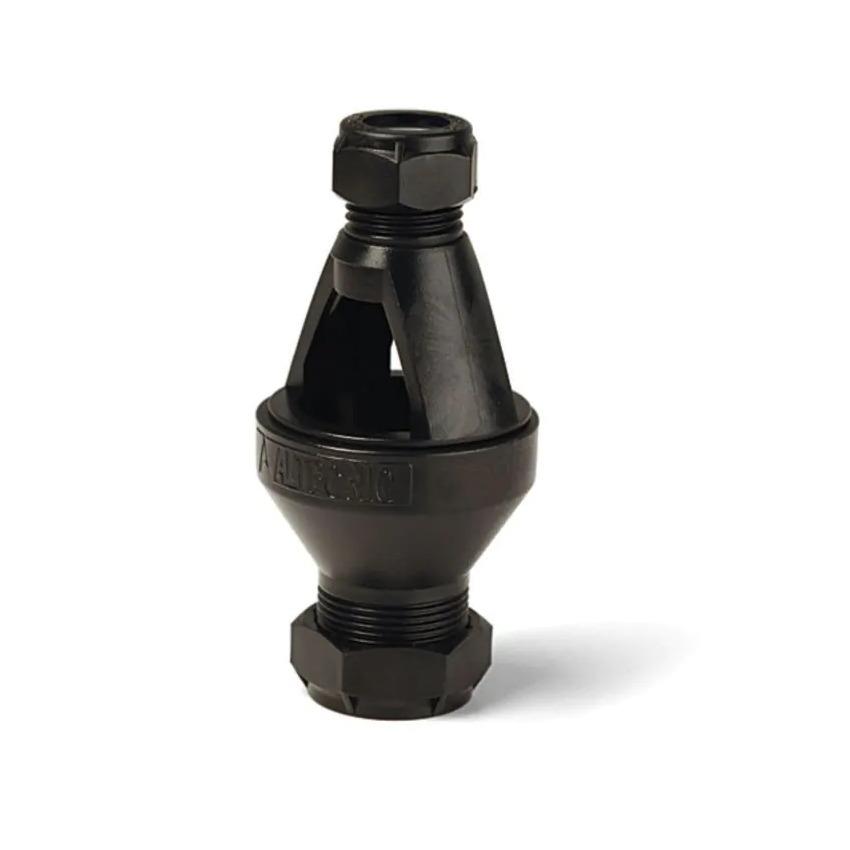

Altecnic 22mm x 28mm Straight Plastic Tundish

Altecnic 22mm x 28mm Straight Plastic Tundish

The use of a tundish meets the requirements of water regulations
G19.1, G19.3 and G19.4 contained in the “The Water Supply (Water
Fittings) Regulations 1999” and the “Water Byelaws 2000 (Scotland)”
for sealed or unvented systems.
The discharge pipe from expansion valves, temperature relief valves
and combined temperature and pressure relief valves should pass
through a tundish with an AUK3 air gap.
The tundish must be located within the same room, as near as possible
to the relief valve, since it is important that the discharge is clearly
seen to warn of a possible problem within the system..
All Altecnic tundishes provide a type AA air gap since they all provide a
minimum air break of 20mm.
A device with a type AA air gap provides additional protection above
a AUK3 air gap and is suitable to protect against category 5 Back
Pressure and category 5 Back Siphonage.
All Altecnic tundishes are WRAS approved products.
